Model
Orion XS 12/12-50A
Victron reference
ORI121217050
- Input range
- 9-17 V
- Output range
- 10-17 V
- Charge current
- 1-50 A
- Continuous power
- 700 W
- Maximum efficiency
- 98,5 %
- Protection
- IP65
- Weight
- 0,33 kg
- Dimensions
- 137,3 × 123,1 × 40 mm
1 of 5
Victron Energy

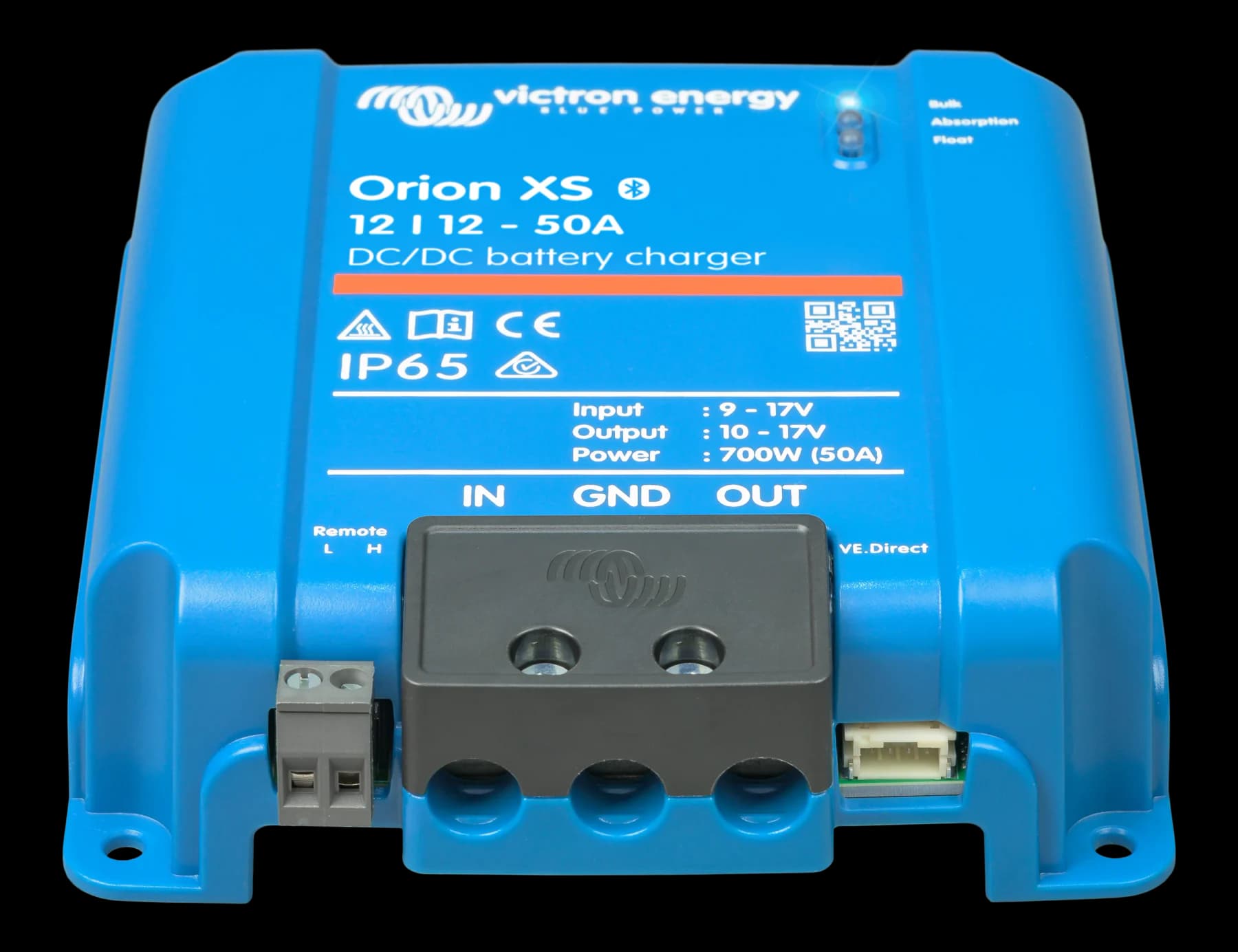

Orion XS 12/12-50A
A DC-DC charger for dual-battery systems.
- Input range
- 9-17 V
- Output range
- 10-17 V
- Charge current
- 1-50 A
- Continuous power
- 700 W
- Maximum efficiency
- 98,5 %
- Protection
- IP65
- Weight
- 0,33 kg
- Dimensions
- 137,3 × 123,1 × 40 mm
€341.46
VAT included.
Check availability
Victron reference: ORI121217050
Price and availability will be checked again before payment.
01
Key features
- Battery-to-battery DC-DC charging
- Designed for smart alternators
- Bluetooth and VictronConnect
- VE.Smart Networking and VE.Direct
Documented compatibility
VictronConnect · VE.Smart Networking · VE.Direct
02
Description
Battery-to-battery charger for 12 V systems and smart alternators, with configuration through VictronConnect, Bluetooth, VE.Smart Networking and VE.Direct.
Sources verified · 2026-08-27
03
Reference and technical data
This page represents one technical model with its own reference.
04
Documentation
Essential technical information selected for this reference.
Certificates and conformity01
